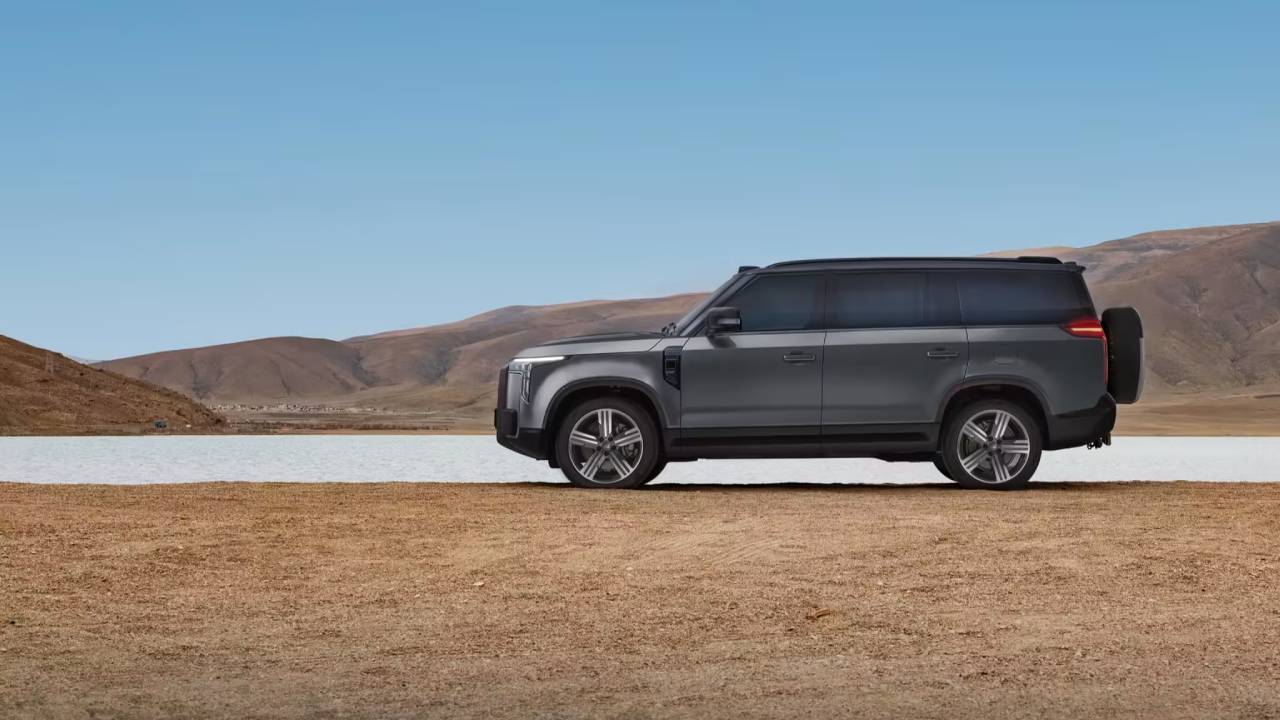

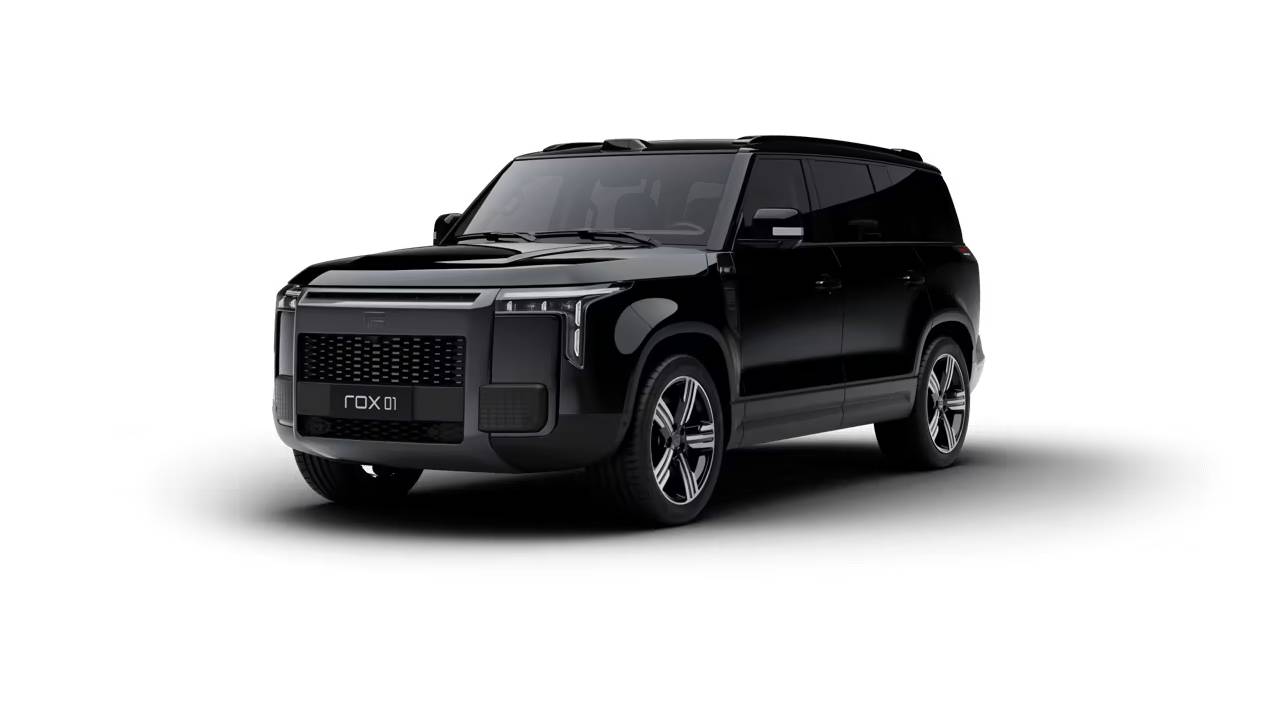

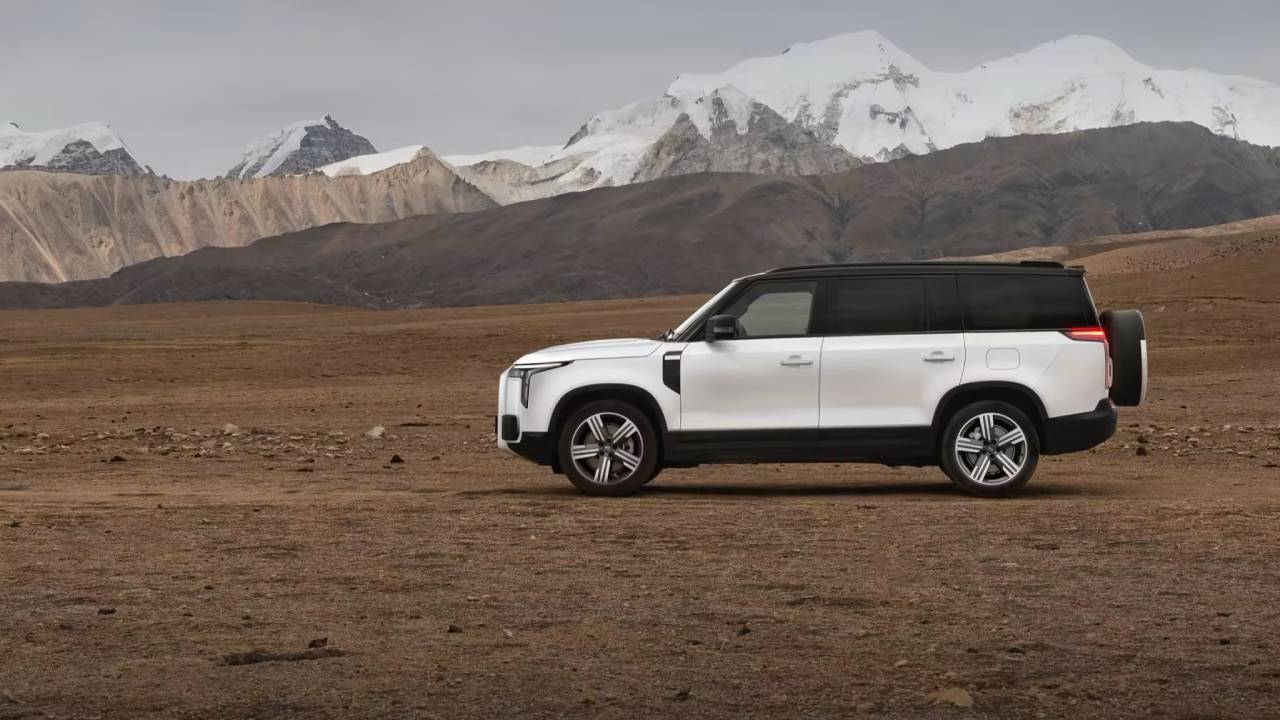

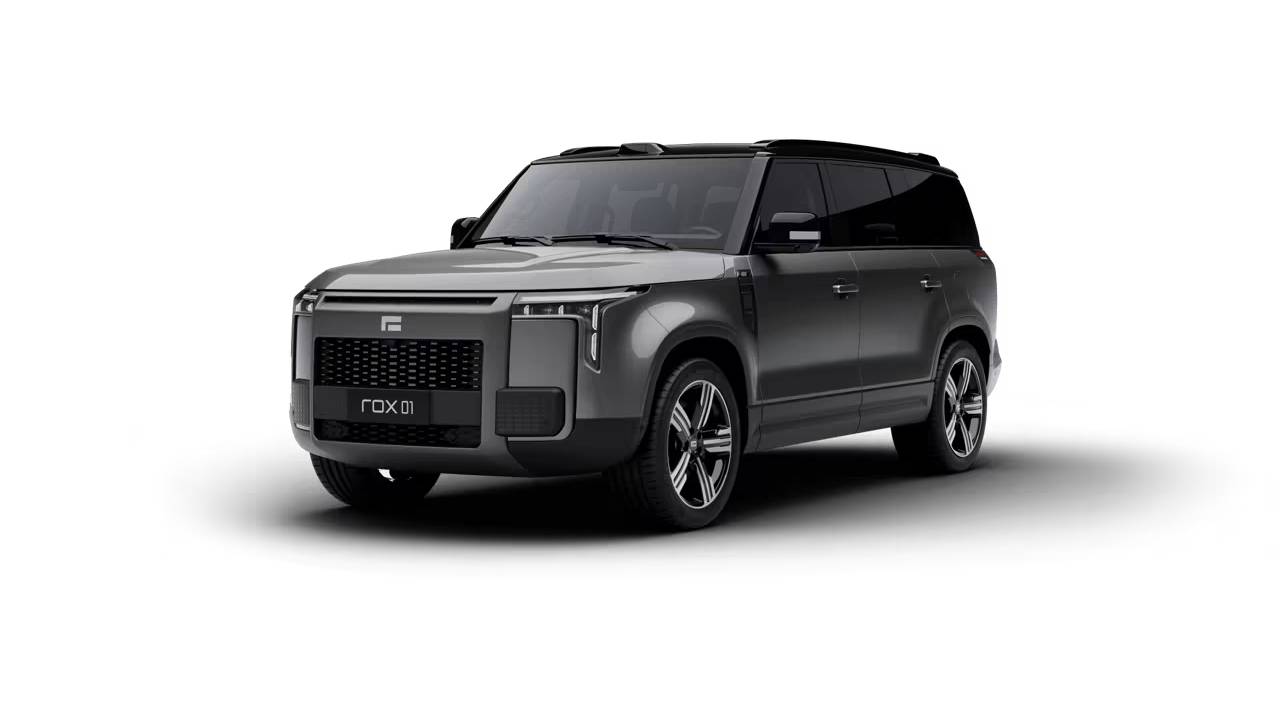

2024 ROX 01 Mid-Size Smart Luxury Range-Extended Electric SUV

Basic Information

Model: ROX 01
Category: Mid-Size Smart Luxury SUV (Range-Extended Electric)
Manufacturer: Jishí Automotive (produced by Beijing Automobile Manufacturing)
Launch Date: 2023 (China)

---

Powertrain & Performance

Power System:

• Range-Extended Electric (1.5T four-cylinder range extender + dual electric motors)

Combined System Output:

• Total Motor Power: 350 kW (476 PS)

• Total Motor Torque: 740 Nm

Acceleration & Speed:

• 0–100 km/h Acceleration: ~5.5 s

• Top Speed: 190 km/h (electronically limited)

Drive Type:

• Front + Rear Dual Motor AWD

---

Battery & Range

Battery Type:

• CATL Ternary Lithium Battery

Battery Capacity:

• 56.01 kWh

Electric Range:

• CLTC Pure Electric Range: 282 km

• WLTC Pure Electric Range: 235 km

Charging:

• Fast Charge 0–80% ~29 min (≈0.48 h)

V2L / External Power:

• External Discharge: 2.2 kW

---

Dimensions & Capacity

• Length × Width × Height (mm): 5050 × 1980 × 1869

• Wheelbase (mm): 3010

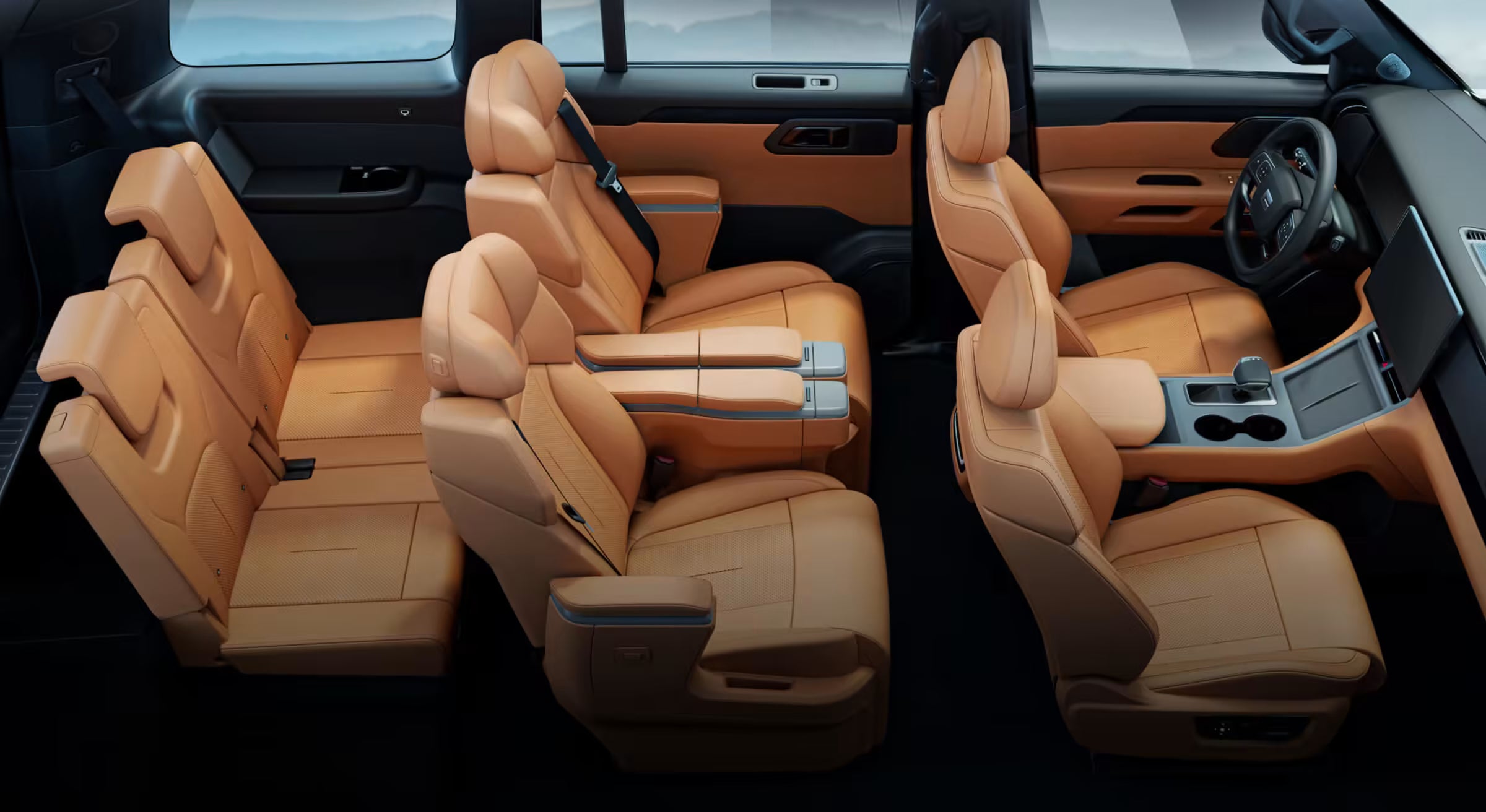

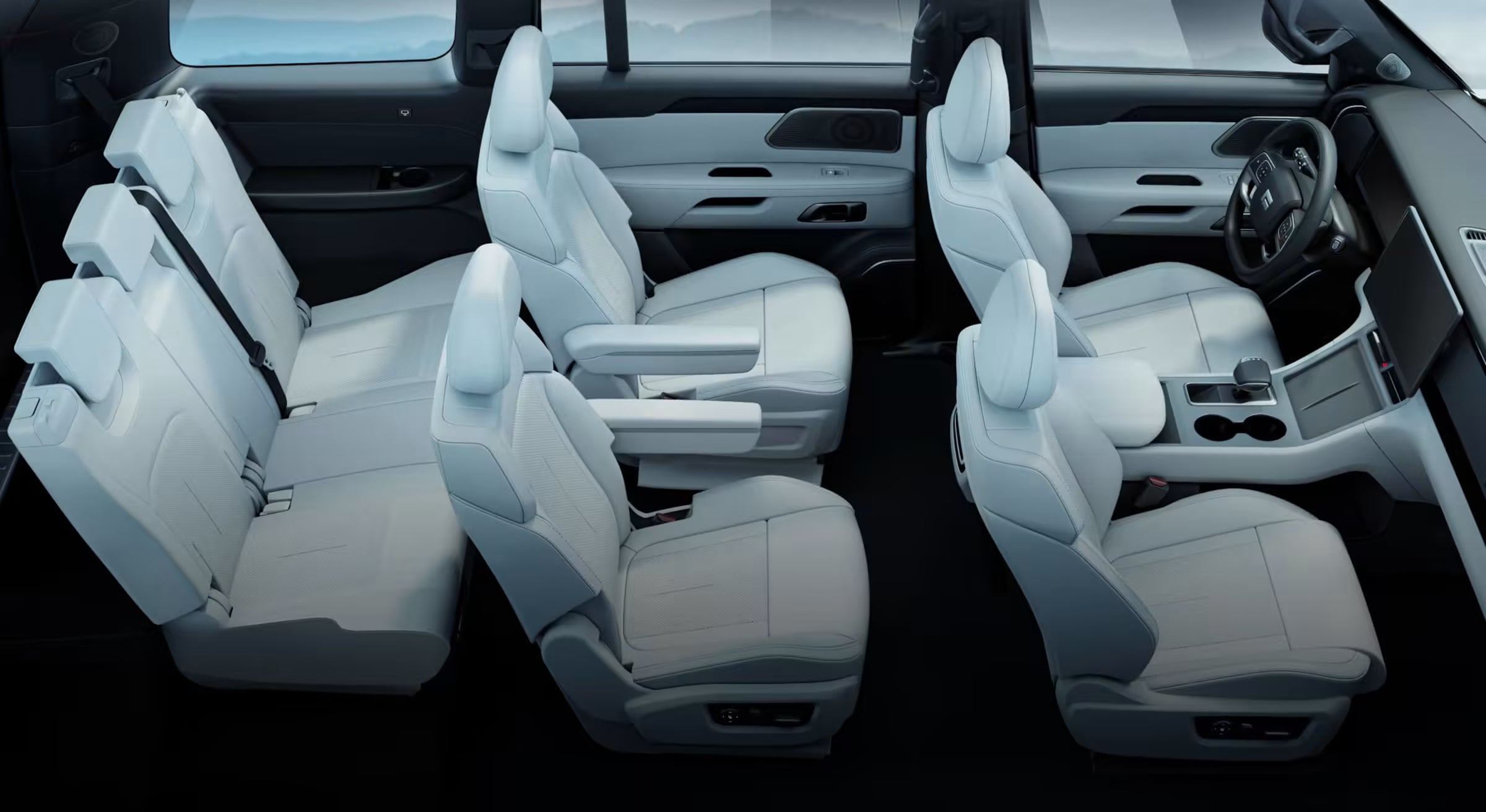

• Seating: Available in 7-seat (2+2+3) and 6-seat (2+2+2) layouts

• Interior Space: Large cabin with flexible second/third row and cargo space

---

Smart Features

Infotainment & Displays:

• 12.3″ Digital Instrument Cluster

• 15.7″ Central Touchscreen Display

• 15.6″ Rear Entertainment Screen

• 9″ Streaming Media Rearview Mirror

Chip & Connectivity:

• Qualcomm Snapdragon 8155 Chip (supports multi-screen interconnect)

Seats & Comfort:

• Nappa Leather Upholstery

• Front & Rear Seat Ventilation, Heating & Massage

• Second/Third Row Seats Foldable for Bed Mode

---

Suspension & Safety

Suspension:

• Front: Full Aluminum Double Wishbone Independent Suspension

• Rear: Full Aluminum H-Arm Multi-Link Independent Suspension

• DCC Continuous Variable Damping System

Off-Road & Clearance:

• Minimum Ground Clearance: 205 mm

• Approach / Departure / Ramp Breakover: info for angles (approx.) from test data

• Maximum Wading Depth: 700 mm

Safety & ADAS:

• L2+ Driving Assist (standard)

• Optional High-Level ADAS with Nvidia Orin-X Chips & Lidars

• 360° Cameras, Radars & Ultrasonics

Body Structure:

• High-Strength Steel & Aluminum Hybrid Body

---

Highlights

• Range Extender System: 1.5 T engine generates power to extend electric range and relieve range anxiety

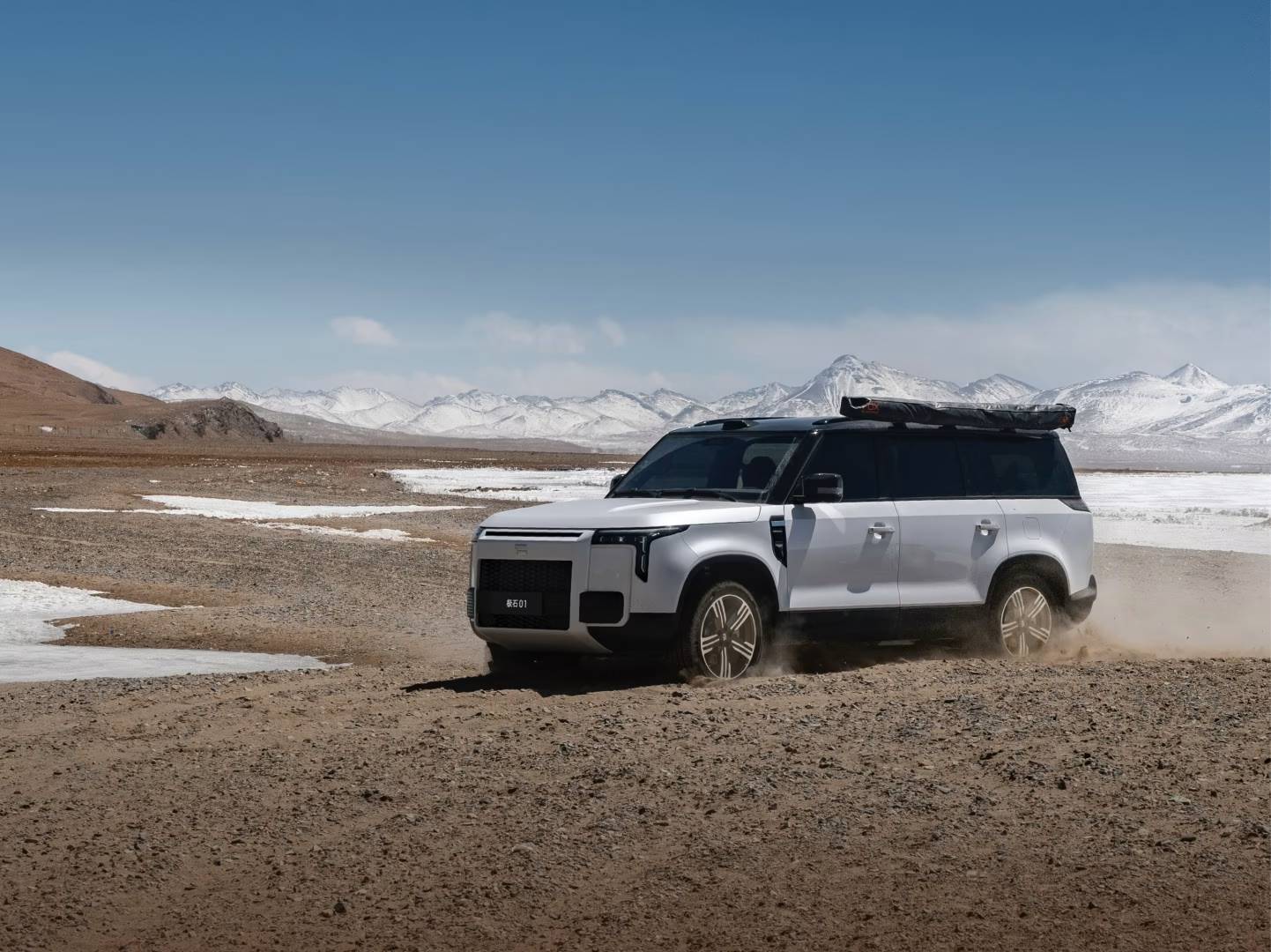

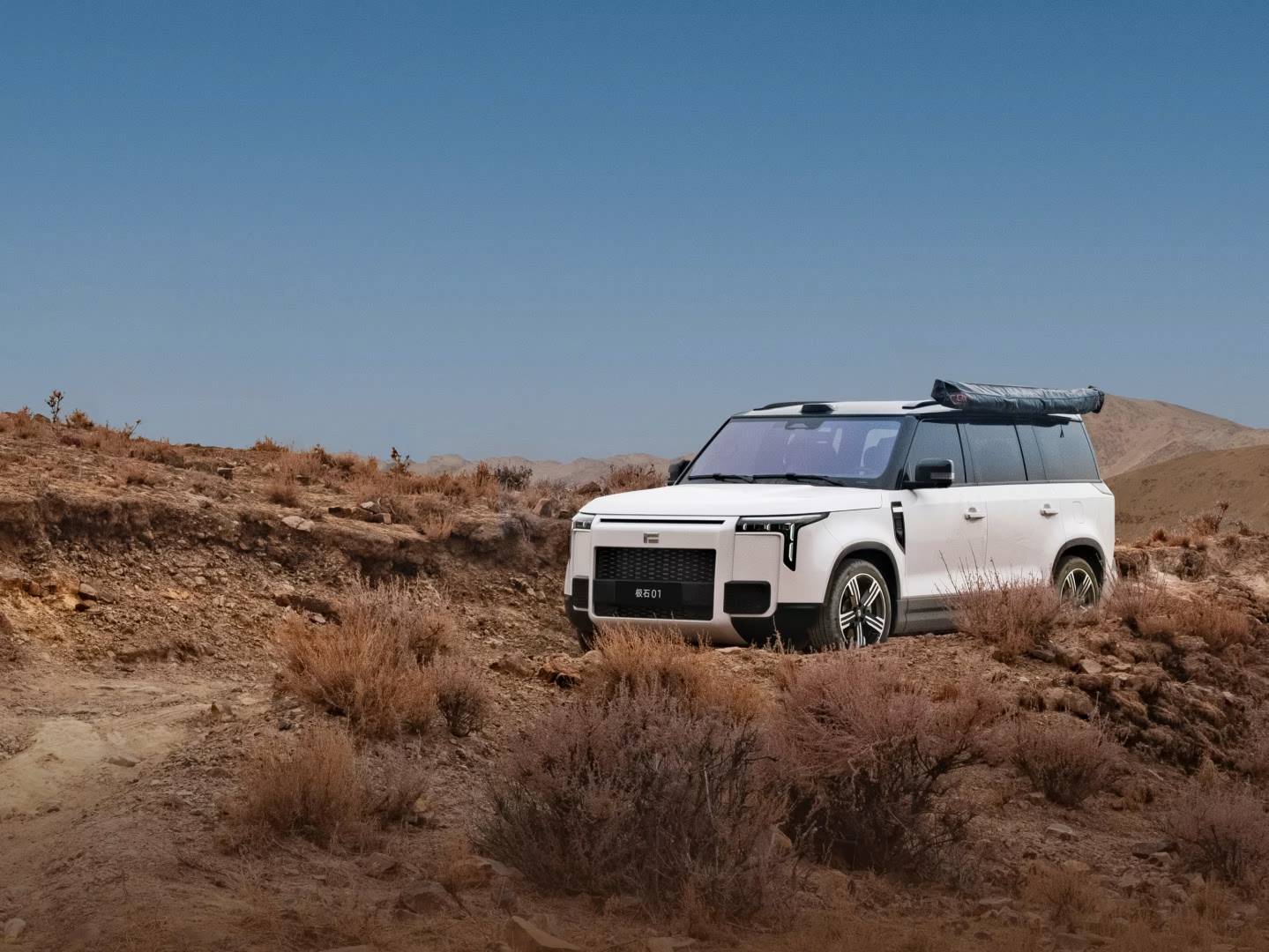

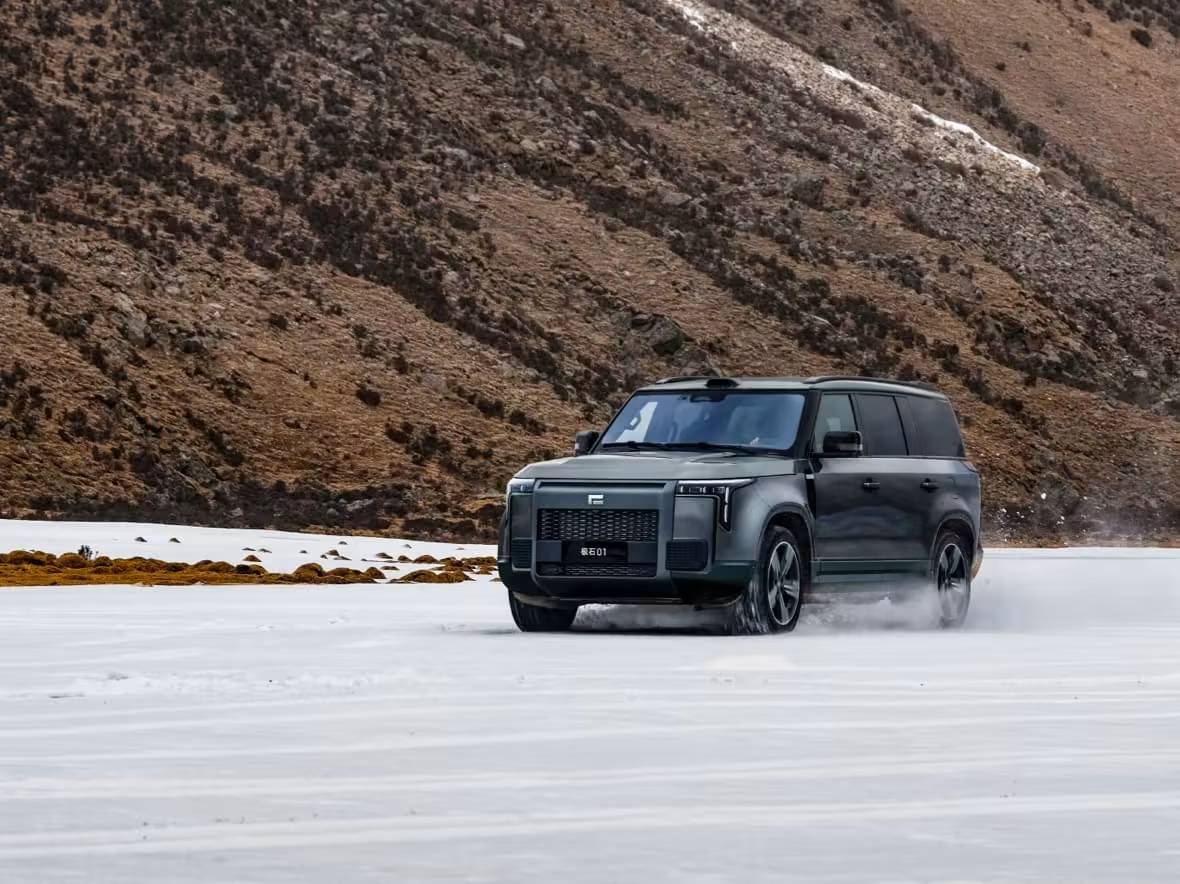

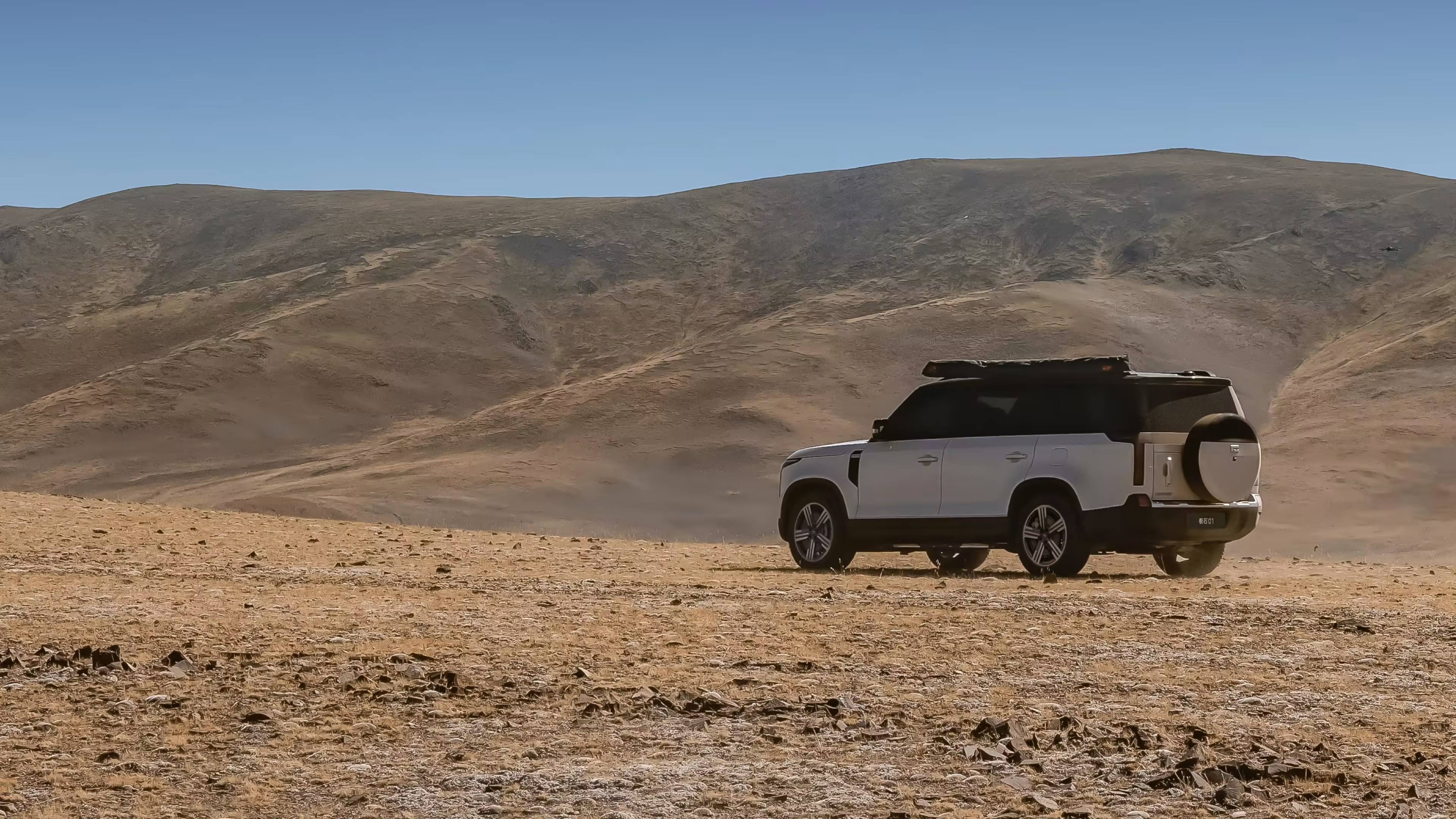

• Off-Road & Outdoor Capability: Intelligent terrain modes and robust chassis design

• Smart Cabin: Multi-screen entertainment and intelligent voice support

• Comfort & Flexibility: Multiple seating configurations and luxury seating functions
